QUANT Automobile
QUANT Automobile, nanoFlowcell Car
Manufactured by: nanoProduction GmbH
December 2014: Baden-Wuerttemberg, Waldshut, Germany
Prof Jens Ellermann, President of the Board of Directors and Nunzio La Vecchia, Chief Technical Officer of nanoFlowcell AG, announced the founding of nanoFlowcell AG to operate as a series-production car manufacturer.
The managing directors of nanoProduction GmbH are Hektor Bertschi and Nunzio La Vecchia.
The first model to be undertaken is the "QUANT" e-Sportlimousine.
Power is from Flow cells or flow batteries which are a very modern form of energy storage device. Flow cells are chemical batteries, combining aspects of an electrochemical accumulator cell with those of a fuel cell.
In the compact cell, a "cold burning" takes place. The electrolytic fluids in flow cells, usually metallic salts in aqueous solution, are pumped from tanks through the cell. This forms a kind of battery cell with a cross-flow of electrolyte liquid. One advantage of this system in general is that the larger the storage tanks for the electrolyte fluid are, the greater the energy capacity. Simultaneously, the concentration of an electrolytic solution determines the quantity of energy that it transports. The nanoFLOWCELL® system with its very high energy density is opening new horizons in this area.
Source: nanoProduction GmbH, 2015
- A Vision Becomes Reality -pdf
- Design of the QUANT e-Sportlimousine -pdf
- Introducing the nanoFLOWCELL -pdf
- Possibilities of the nanoFLOWCELL -pdf
- History -pdf
- Visionary Nunzio La Vecchia -pdf
- Interview with Nunzio La Vecchia -pdf
- FAQ -pdf

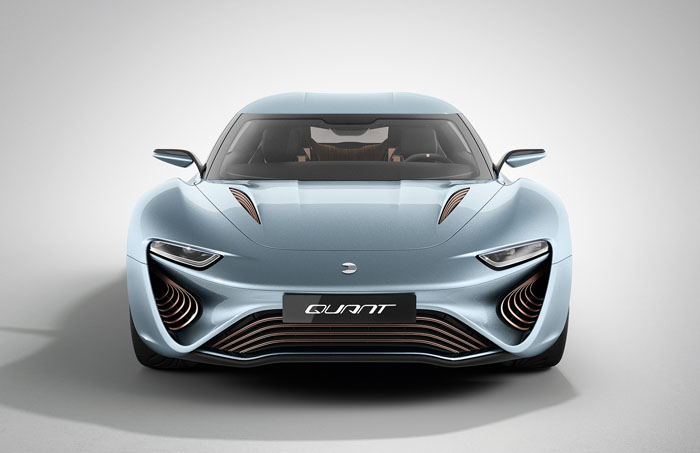

QUANT e-Sportlimousine 2015
Image Credit: Photo Courtesy of nanoProduction Media
Descriptive Poster For This Car - JPG file

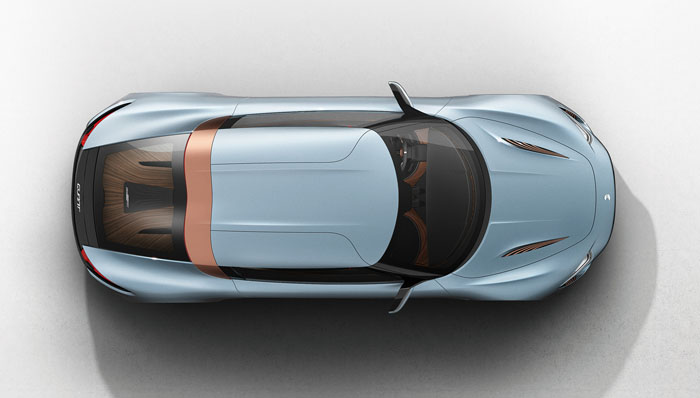

QUANT e-Sportlimousine 2015
Image Credit: Photo Courtesy of nanoProduction Media

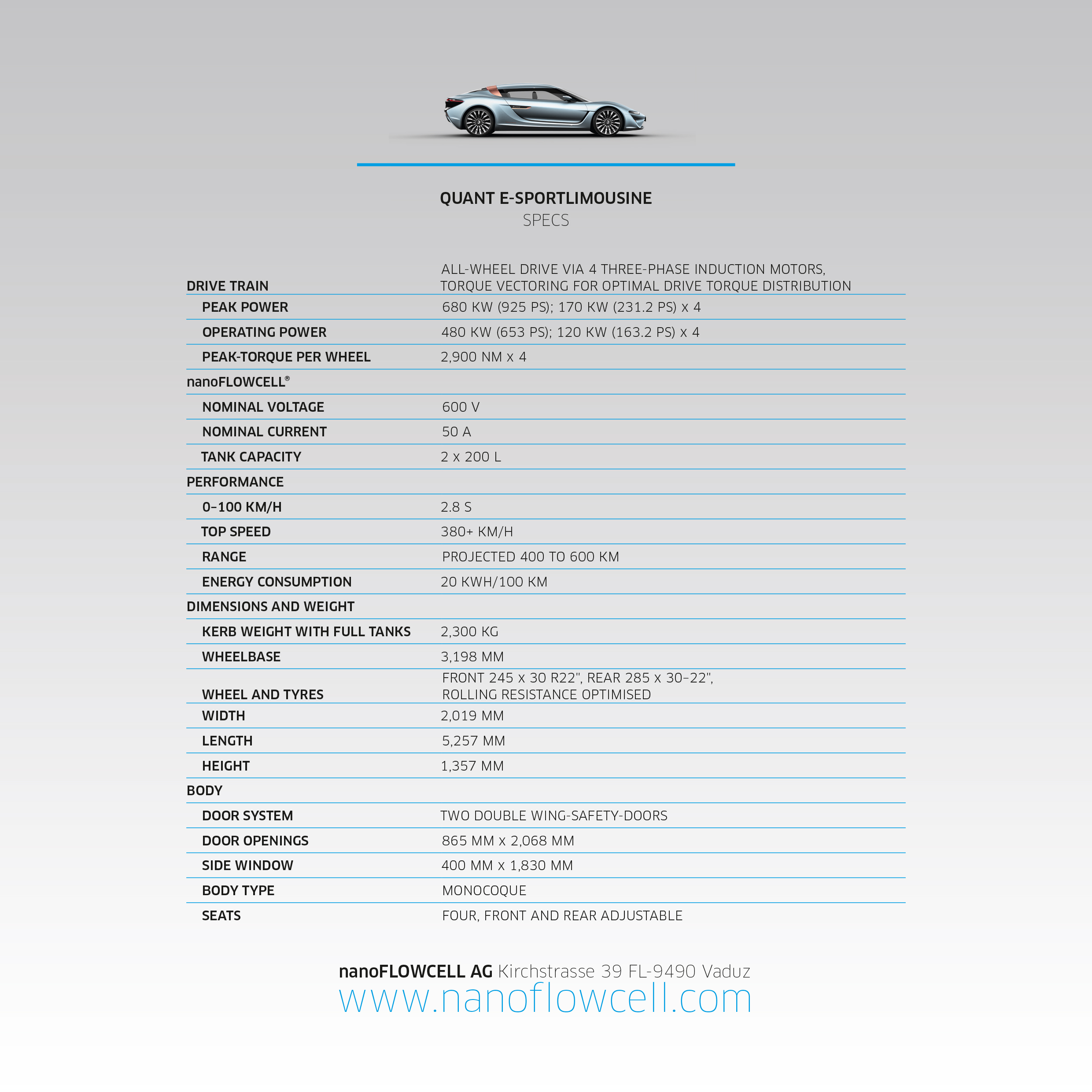

TECHNICAL DATA
DRIVE TRAIN:
all-wheel drive via 4 three-phase induction motors;
torque vectoring for optimal drive torque distribution;
peak power: 680 KW (925 PS); 170 KW (231.2 PS) x 4;
operating power: 480 KW (653 PS); 120 KW (163.2 PS) x 4;
peak-torque per wheel: 2,900 NM x 4;
nanoFlowcell®;
nominal voltage: 600 V;
nominal current: 50 A;
tank capacity: 2 x 200 L;
PERFORMANCE:
0 - 100 KM/H: 2.8 S;
top speed: 380 + KM/H;
range: projected 400 to 600 KM;
energy consumption: 20 KWH/100 KM;
DIMENSION AND WEIGHT:
kerb weight with full tanks: 2,300 KG;
wheelbase: 3,198 MM;
WHEEL AND TiRES:
front: 245 x 30 R22";
rear: 285 x 30-22";
rolling resistance optimised;
width: 2,019 MM;
length: 5,257 MM;
height: 1,357 MM;
BODY:
door system: two double wing-safety-doors;
door openings: 865 MM x 2,068 MM;
side window: 400 MM x 1,830 MM;
body type: monocoque;
seats: four, front and rear adjustable.
Source: nanoProduction GmbH, 2015

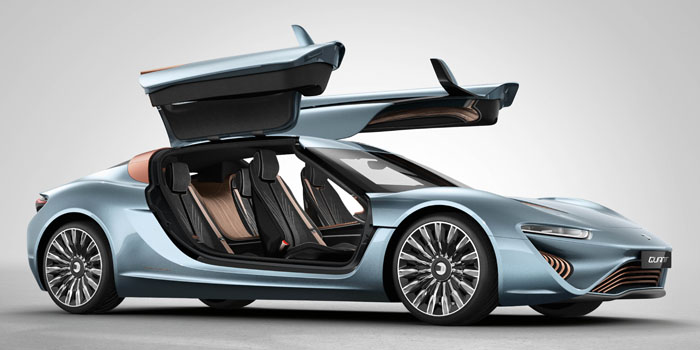

QUANT e-Sportlimousine 2015
Image Credit: Photo Courtesy of nanoProduction Media

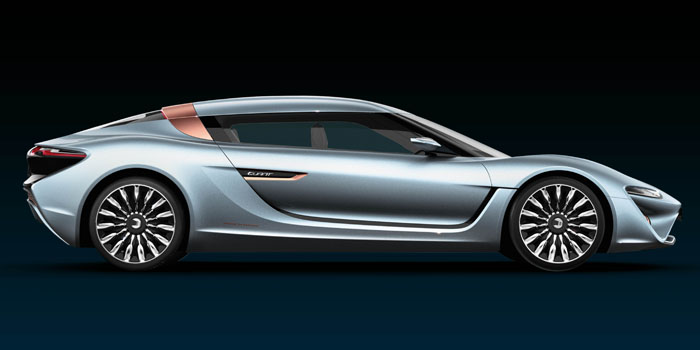

QUANT e-Sportlimousine 2015
Image Credit: Photo Courtesy of nanoProduction Media

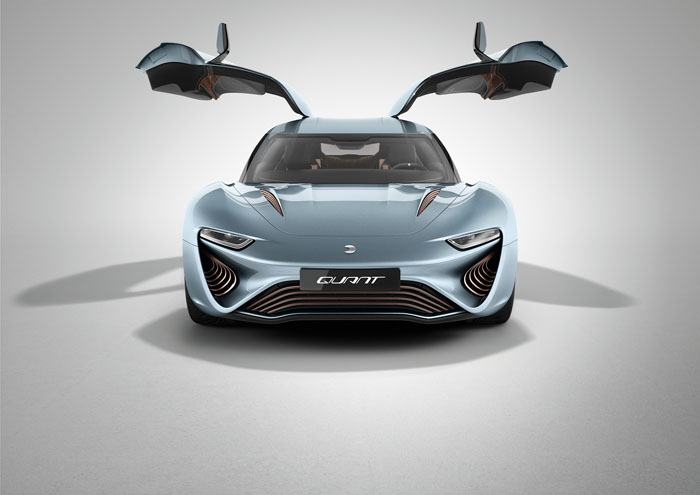

QUANT e-Sportlimousine 2015
Image Credit: Photo Courtesy of nanoProduction Media

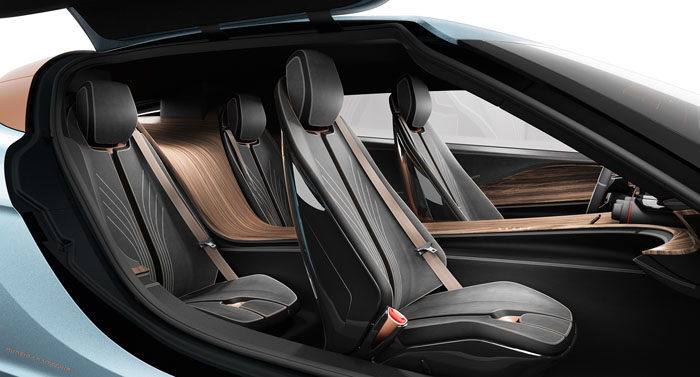

QUANT e-Sportlimousine 2015
Image Credit: Photo Courtesy of nanoProduction Media
QUANT e-Sportlimousine 2015
Image Credit: Photo Courtesy of nanoProduction Media
QUANT e-Sportlimousine 2015
Image Credit: Photo Courtesy of nanoProduction Media
QUANT e-Sportlimousine 2015
Image Credit: Photo Courtesy of nanoProduction Media
QUANT e-Sportlimousine 2015
Image Credit: Photo Courtesy of nanoProduction Media
QUANT e-Sportlimousine 2015
Image Credit: Photo Courtesy of nanoProduction Media
QUANT e-Sportlimousine 2015
Image Credit: Photo Courtesy of nanoProduction Media
