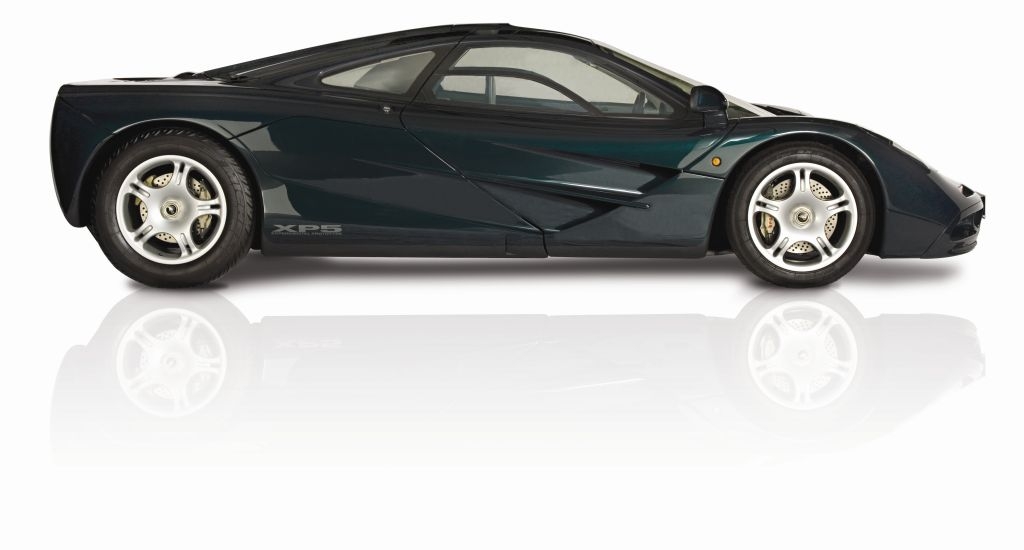

McLaren F1 2009
McLaren download photo 2009
McLaren F1 2009
McLaren download photo 2009
The McLaren F1 delivers outstanding performance and handling as a result of intelligent engineering and the Formula One technology at the time of design. The world's first production road car to feature an all carbon composite monocoque and body structure. The extensive use of carbon fibre and other lightweight materials for overall low weight, improve handling and performance and yet providing exceptional strength and unsurpassed levels of safety.
Powered by a BMW S70/2, 6.1-litre, quad-cam, 48-valve V12, 627 horsepower engine, specifically designed and built for the F1. Power is delivered through a bespoke six-speed transaxle gearbox.
The F1 radical design features a central driving position for optimum visibility, dihedral doors for easy ingress and egress, active aerodynamics and "ground-plane shear" suspension geometry for exceptional vehicle dynamics.

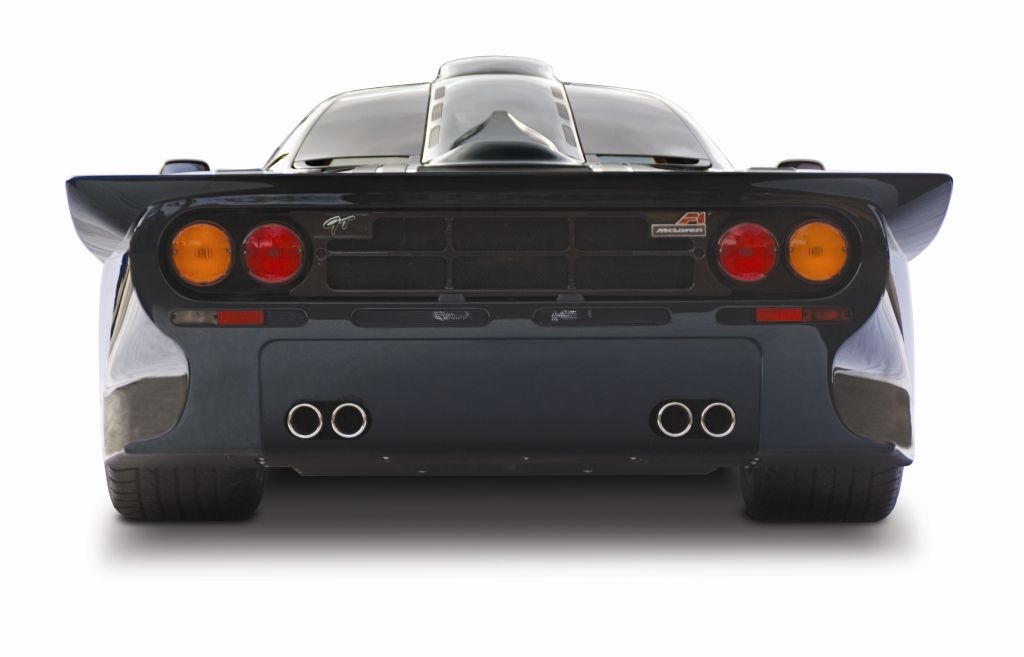

McLaren F1 LT 2009
McLaren download photo 2009
McLaren F1 LT 2009
McLaren download photo 2009
McLaren F1 LT 2009
McLaren download photo 2009
McLaren F1 LM 2009
McLaren download photo 2009
A limited edition of just five McLaren F1s.
F1 LM is a F1 GTR transformed into a road-legal car, to celebrate the 1995 F1 GTR finishing first, 3rd, 4th, 5th and 13th places in the 1995 Le Mans 24 Hours.
The changes to the standard car was significant and included engine, aero, set-up and weight reduction of 60 kg.
McLaren F1 LM 2009
McLaren download photo 2009
McLaren F1 LM 2009
McLaren download photo 2009
McLaren F1 GTR 1997
McLaren download photo 2009
McLAREN F1 GTR 97 RACE CAR - SPECIFICATION
Type Number S 70/3 GTR;
Cylinder Arrangement V12;
Cylinder Angle 60 degrees;
Power Output 441 / 600 kW / PS
@ 7500 rpm;
Max. Torque 527 / 388 Nm / lb.ft
@ 4500 rpm;
Engine Capacity 6064 / 370 cc / in 3;
Valves / Cylinder 4;
Bore 86.0 / 3.38 mm / inches;
Stroke 87.0 / 3.42 mm / inches;
Compression Ratio 11.0:1;
Body
Length 4933 / 194.21 mm / inches;
Width 1920 / 75.59 mm / inches;
Height 1200 / 47.24 mm / inches;
Wheelbase 2723 / 107.25 mm / inches;
Front Overhang 1120 / 44.09 mm / inches;
Rear Overhang 1090 / 42.91 mm / inches;
Front Track 1617 / 63.66 mm / inches;
Rear Track 1582 / 62.28 mm / inches;
Ground Clearance Front 70 / 2.76 mm / inches;
