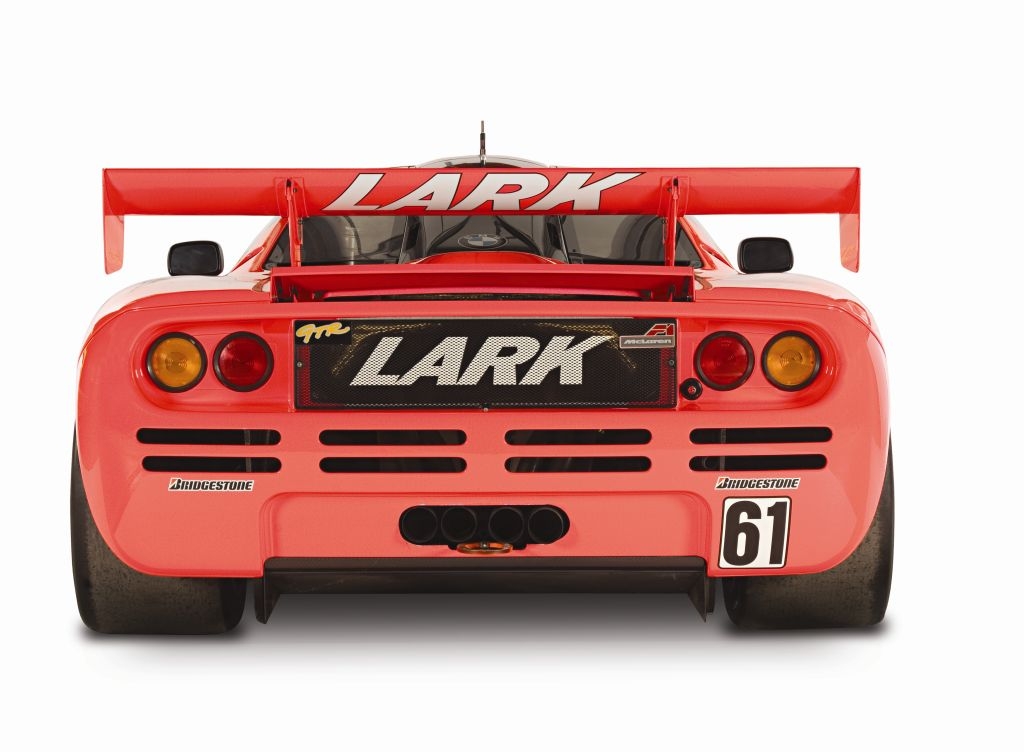

McLaren F1 GTR 1996
McLaren download photo 2009
McLAREN F1 GTR 96 RACE CAR - SPECIFICATION
Type Number S 70/3 GTR;
Cylinder Arrangement V12;
Cylinder Angle 60 degrees;
Power Output 441 / 600 kW / PS
@ 7500 rpm;
Max. Torque 527 / 388 Nm / lb.ft
@ 4500 rpm;
Engine Capacity 6064 / 379.9 cc / in 3;
Valves / Cylinder 4;
Bore 86.0 / 3.38 mm / inches;
Stroke 87.0 / 3.42 mm / inches;
Compression Ratio 11.0:1;
Body
Length 4367 / 171.93 mm / inches;
Width 1900 / 74.8 mm / inches;
Height 1090 / 42.91 mm / inches;
Wheelbase 2718 / 107.01 mm / inches;
Front Overhang 1050 / 41.34 mm / inches;
Rear Overhang 599 / 23.58 mm / inches;
Front Track 1558 / 61.34 mm / inches;
Rear Track 1488 / 58.58 mm / inches;
Ground Clearance Front 60 / 2.36 mm / inches;
McLAREN Automotive 2008
McLaren F1 GTR 1996
McLaren download photo 2009
F1 GTR 96
The '96 F1 GTR changes from the '95 car is a longer front overhang and larger rear wing improving downforce. Additional weight reduction of 100kg resultion in the GTR chassis to the 1,000kg minimum limit. Although 70% of all components were new for '96, a package was introduced for '95 GTRs, allowing them to be upgraded.
